ALS AD-08mk2

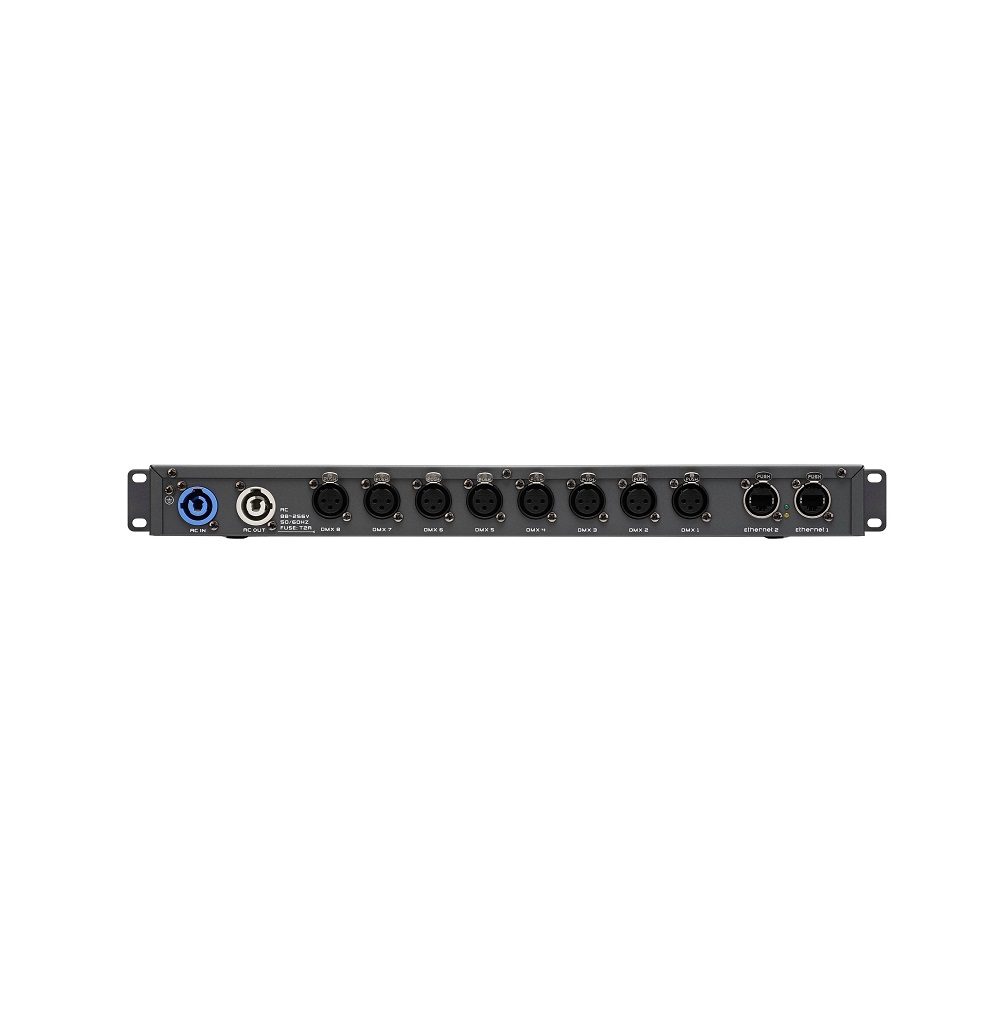

8 DMX ports, configurable as inputs or outputs.

Converts ArtNet to DMX-512 and vice versa.

Uses Neutrik 3-pin XLR for DMX ports.

Provides 100% electrical isolation between all inputs/outputs to prevent issues from affecting other ports.

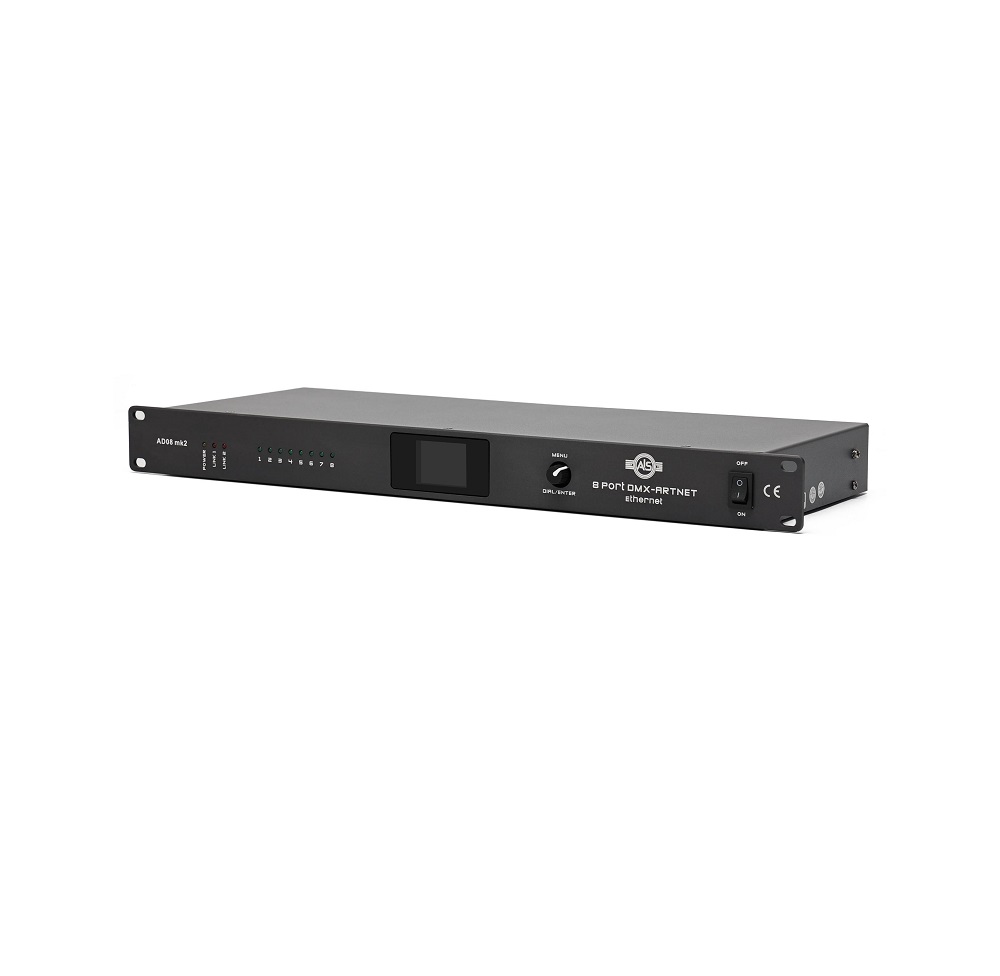

TFT display for parameter display with automatic screen saver.

LED indicators for each input and output.

Supports 128 Net Addresses, each with 16 Subnet Addresses, and each Subnet with 16 Universes.

In total, up to 32,768 Universes and 1,677,216 channels can be controlled with multiple units.

Accepts a wide input power supply: AC88–256V, 50/60Hz.

Dimensions: 19” 1U, 482mm × 168mm × 44mm.

Net weight: 1.7 kg.
