Optical system

– Light source: 1x 550W Red, Green, Blue, Amber, White

– Average lifespan: 20,000 hours

– Color temperature: (the entire lamp color temperature channel is adjustable from 2000-10.000K)

– Color rendering index: 93 @ 2800K

– Light output of the whole machine: 10215LM

– Beam angle: 50° Flood angle of the whole lamp: 87 degrees-

Effect

– Uniform RGBAW color mixing system

– Fast electronic strobe 1 ~ 25 Hz

– Refresh rate: 800 ~ 25K Hz (800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz)

– Dimming delay: three types

– Dimming curve: four types

software

– Software update via DMX signal for quick and easy upgrade

– Intelligent temperature protection to ensure the life of LED lamp beads

– 0~100% dimming

Control and programming

-Protocol: Standard DMX512 /RDM protocol

– Data connection: three-core or five-core signal line input/output (XLR 5-pin),

– DMX channel: 1//4/9/5/3/10/14/8/12/15/19/5/12/17/23CH

– Display: OLED display

Lamp structure and heat dissipation

– Magnesium-aluminum alloy structure

– Speed-adjustable low-noise waterproof fan with forced convection cooling

– Unlimited splicing

Power

– Input voltage: AC 100V ~ 240V 50/60Hz

– Rated power of the whole lamp: 300W Power factor: 0.95F Input current: 1.45A 220V

– Power connection: Waterproof power cord input (TRUE1)

– Maximum power: 300W

– Constant power: 120W

other

-Protection level: IP65

– Working environment: -15℃～ 45℃

– Starting environment: -15℃～ 45℃

SIZE

– SIZE：273 x 215 x 145mm

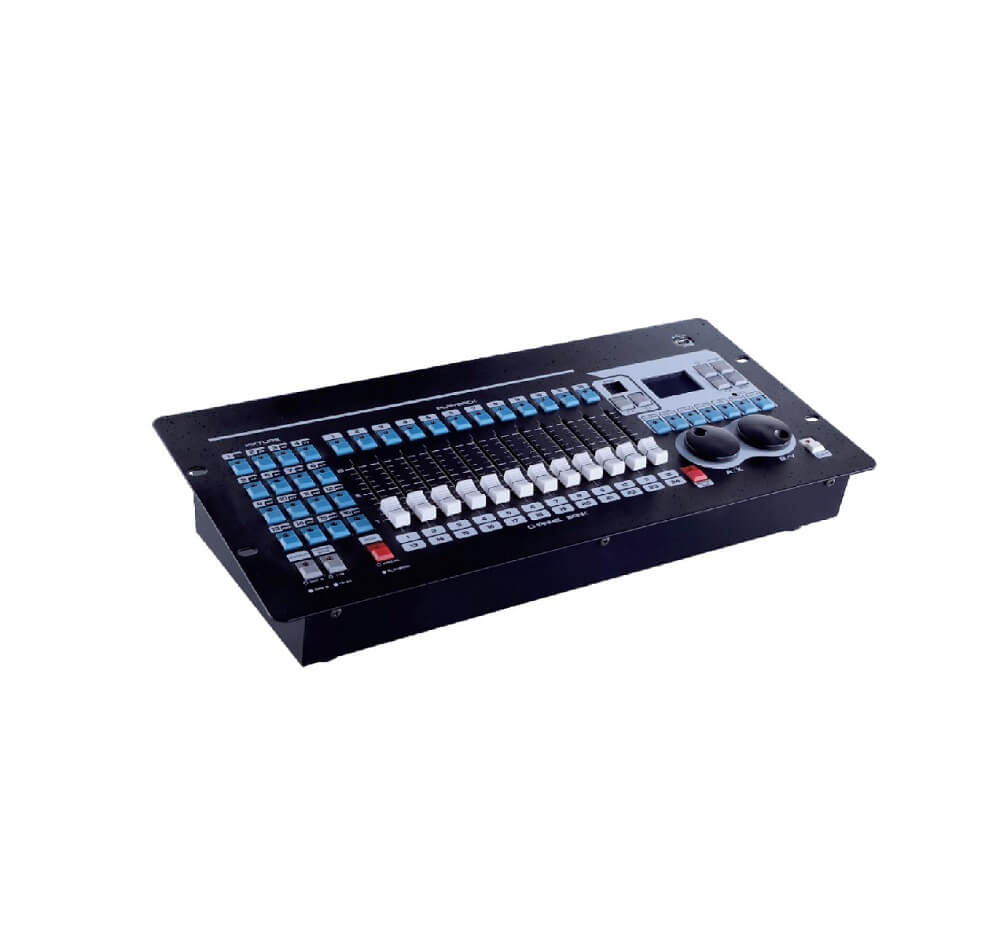

NEXUS DMX768
